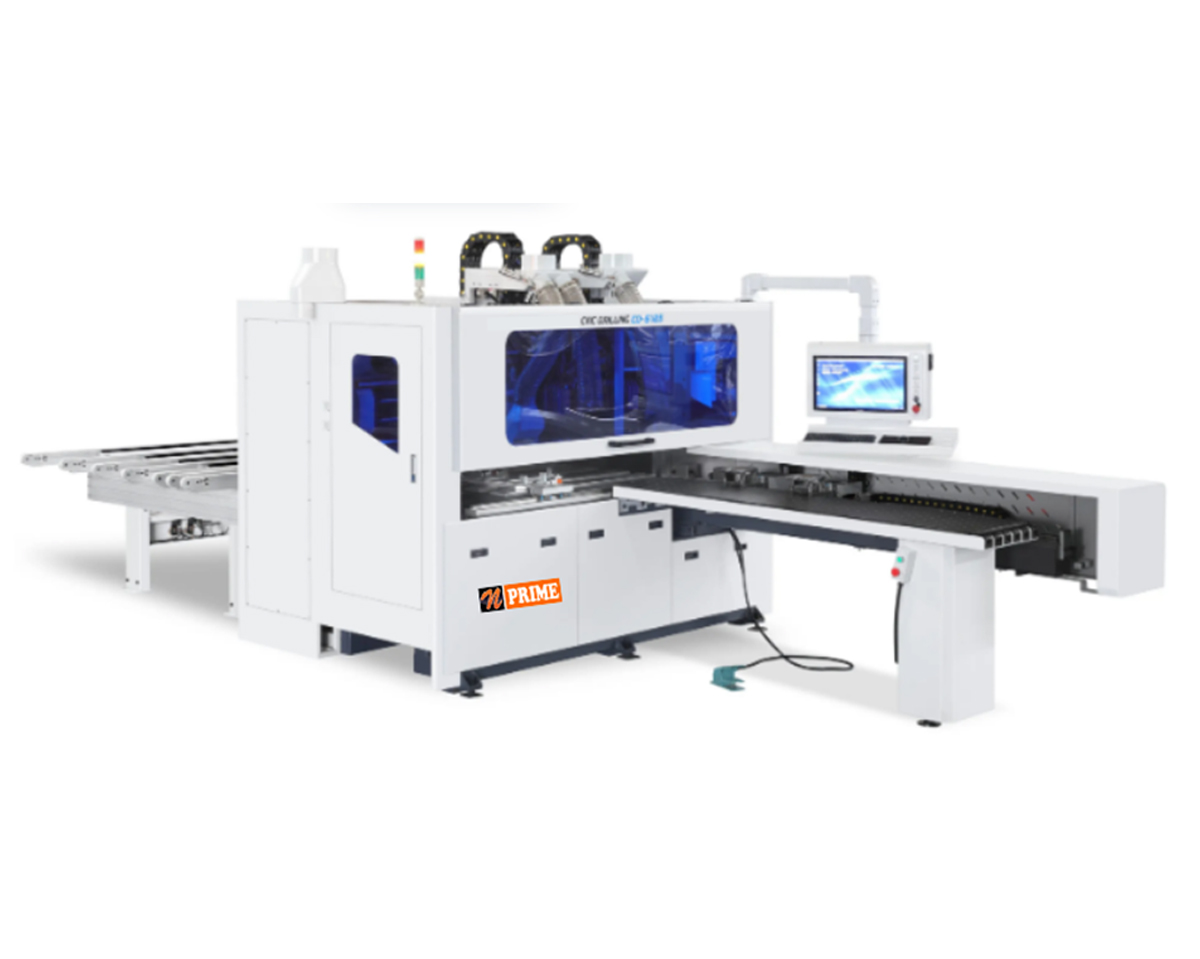

Model | CD-612B | Drilling group motor power | 2.2KW×3 |
Milling processing equipment | Yes | Thickness of board | 10-55mm |
Spindle form | Er32 | Width of board | 40-1220mm |
Shank diameter | 10,1/2mm | Length of board | 140-3000mm |
Spindle motor power | 3.5KW×2 | Voltage | 380V.50Hz |
Spindle speed | 18000rpm | Pressure | 0.6-0.8M pa |
Vertical drill | 12(Up) 9(Down) | Product size | 6445×2840×2220(mm) |
Horizontal drilling | 4+4 in X direction, 4+4 in Y direction, 16 in total | Power | 25kw |
