Panel Saw

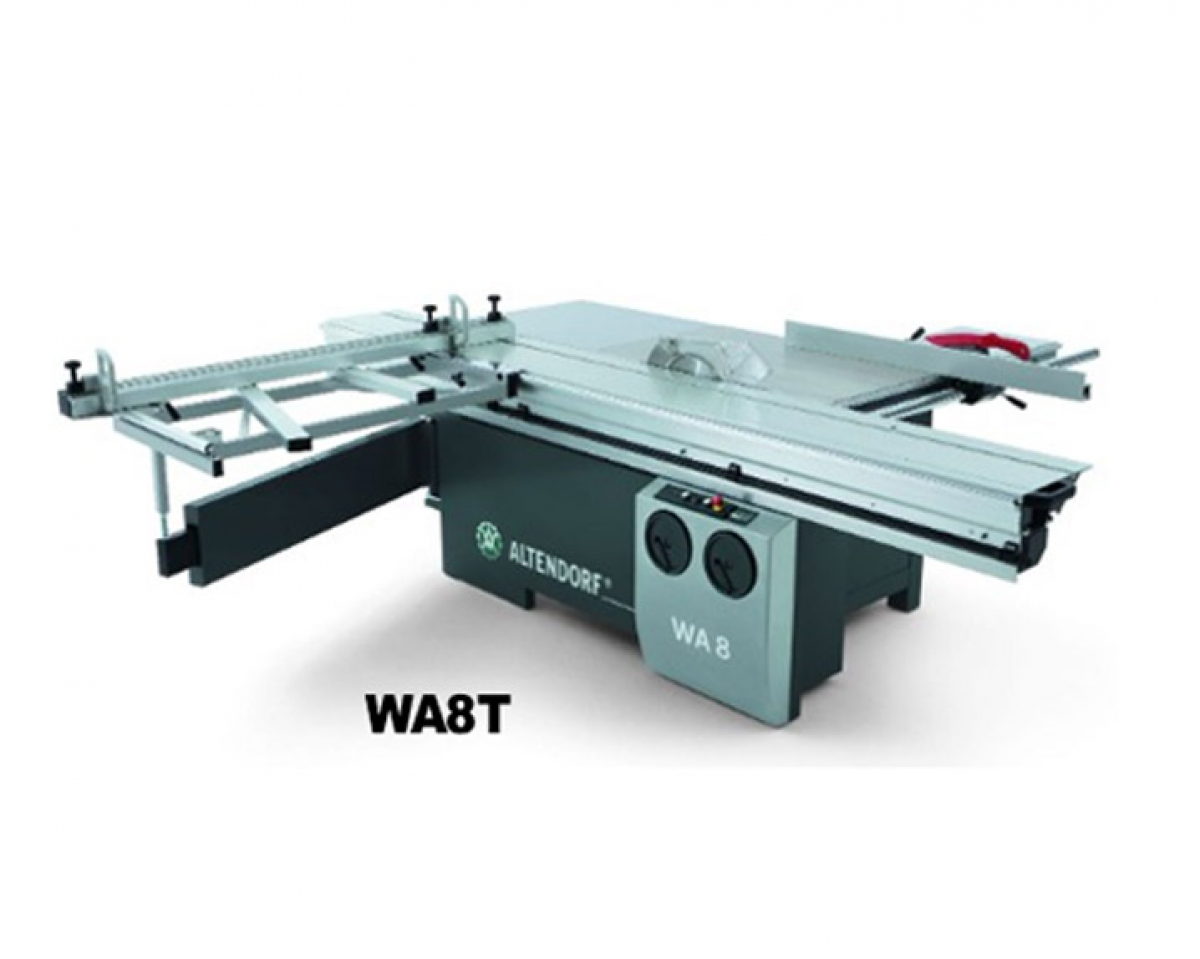

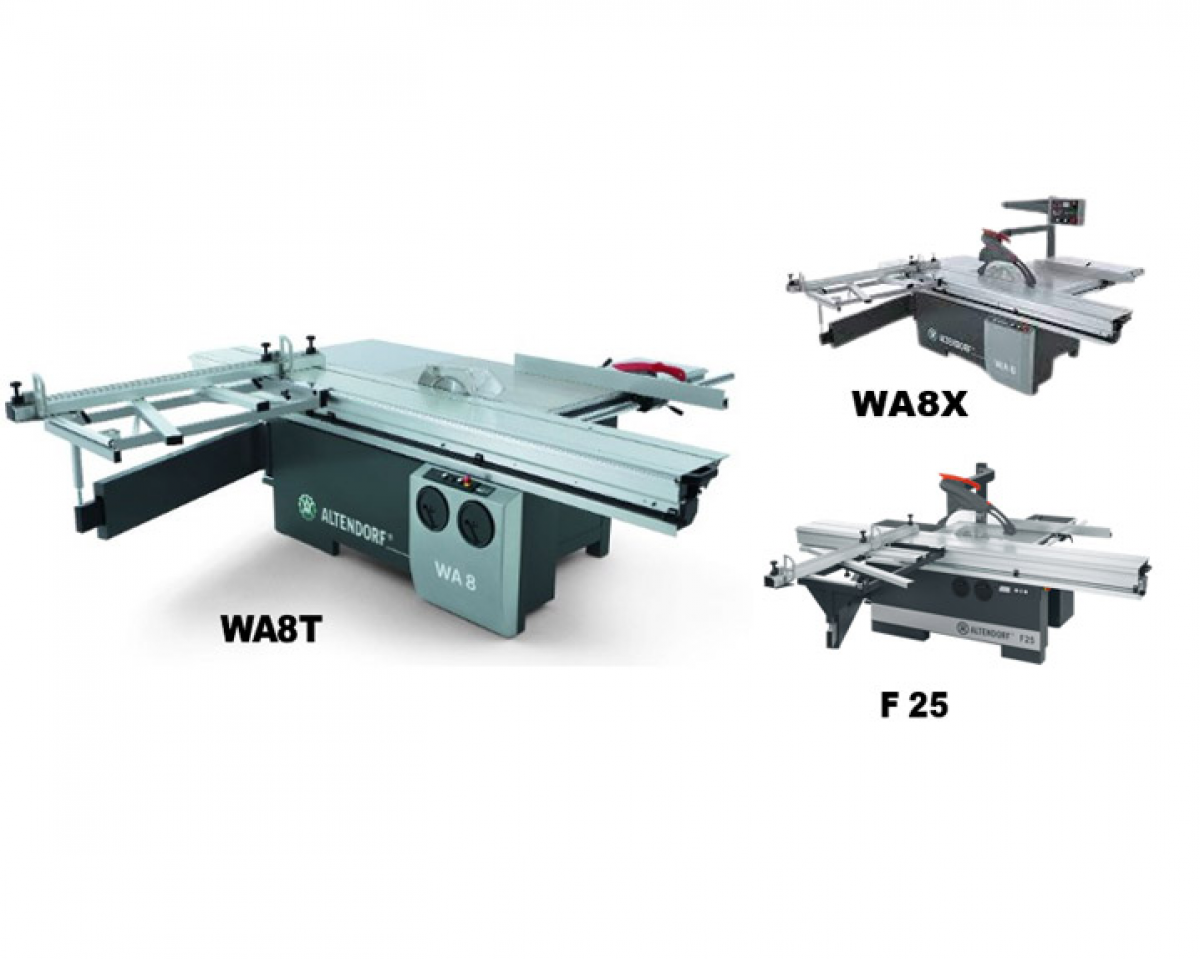

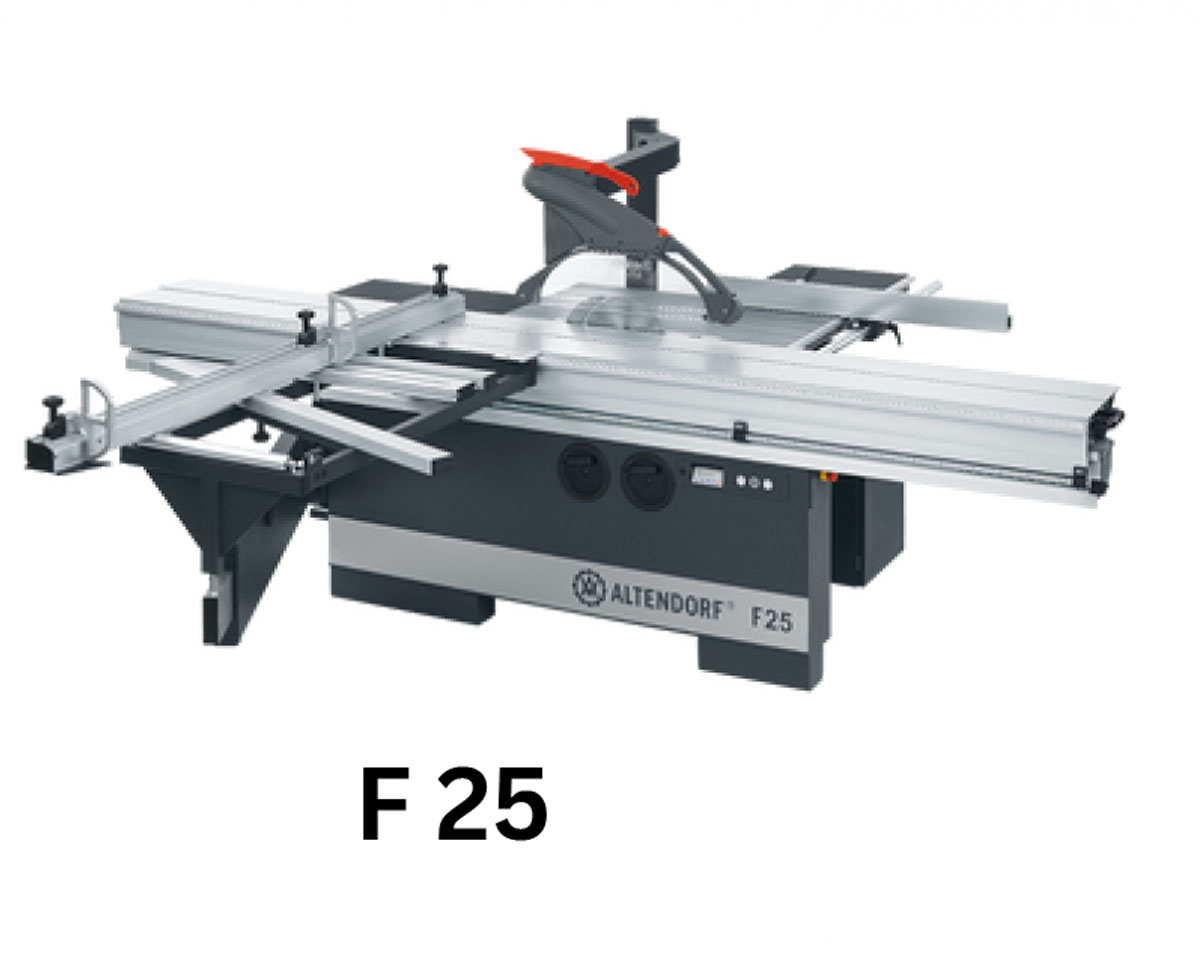

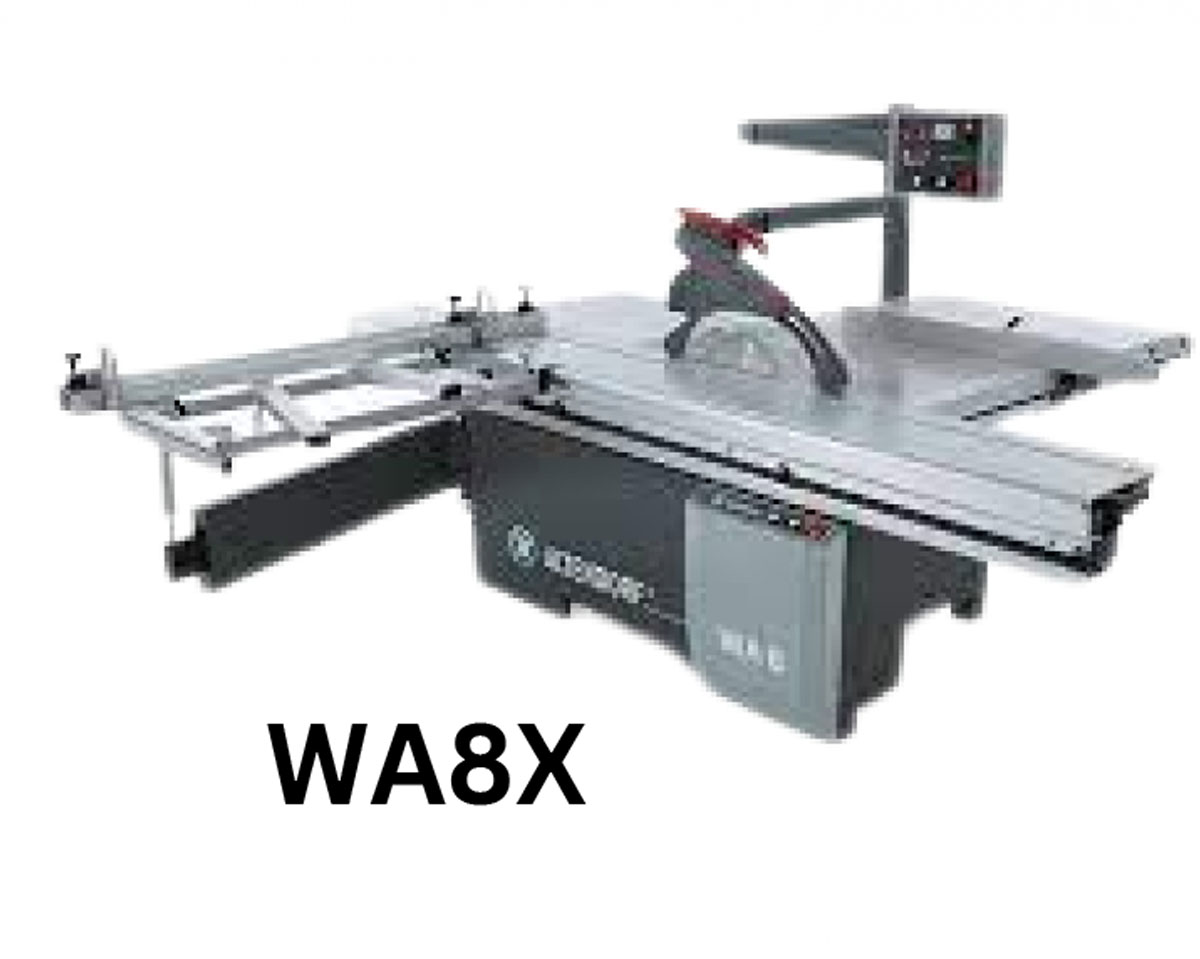

MODEL	WA8T	WA8X	F 25
TABLE LENGTH	3000/3200 mm	3000/3200 mm	3,200 mm
CUTTING LENGTH	2905/3105 mm	2905/3105 mm
SAW BLADE DIA	350 / 400 mm	400 mm	max. 315 mm
CUTTING HEIGHTS,VERTICAL	0-100mm / 0-125 mm	0-125 mm	100 mm
CUTTING HEIGHT 45°	0-70mm / 0-87 mm	0-87 mm	70 mm
CUTTING WIDTH	1000 mm / 1300 mm	1300 mm	1,000 mm
MACHINE WEIGHT	1100kg	1100kg	800 kg
MOTOR	5.5kw	5.5kw	4 kW
DUST EXTRACTION CONNECTIONS
Top connection :	Small extraction hood :Ø50mm	Small extraction hood :Ø50mm	Small extraction hood :Ø50mm
	Large extraction hood : Ø80mm	Large extraction hood : Ø80mm	Large extraction hood : Ø80mm
Bottom connection	Ø120mm	Ø120mm	Ø120mm
Min air requirement	Vmin = 1150m3/h at 20 m/sec	Vmin = 1150m3/h at 20 m/sec	Vmin = 1150m3/h at 20 m/sec
