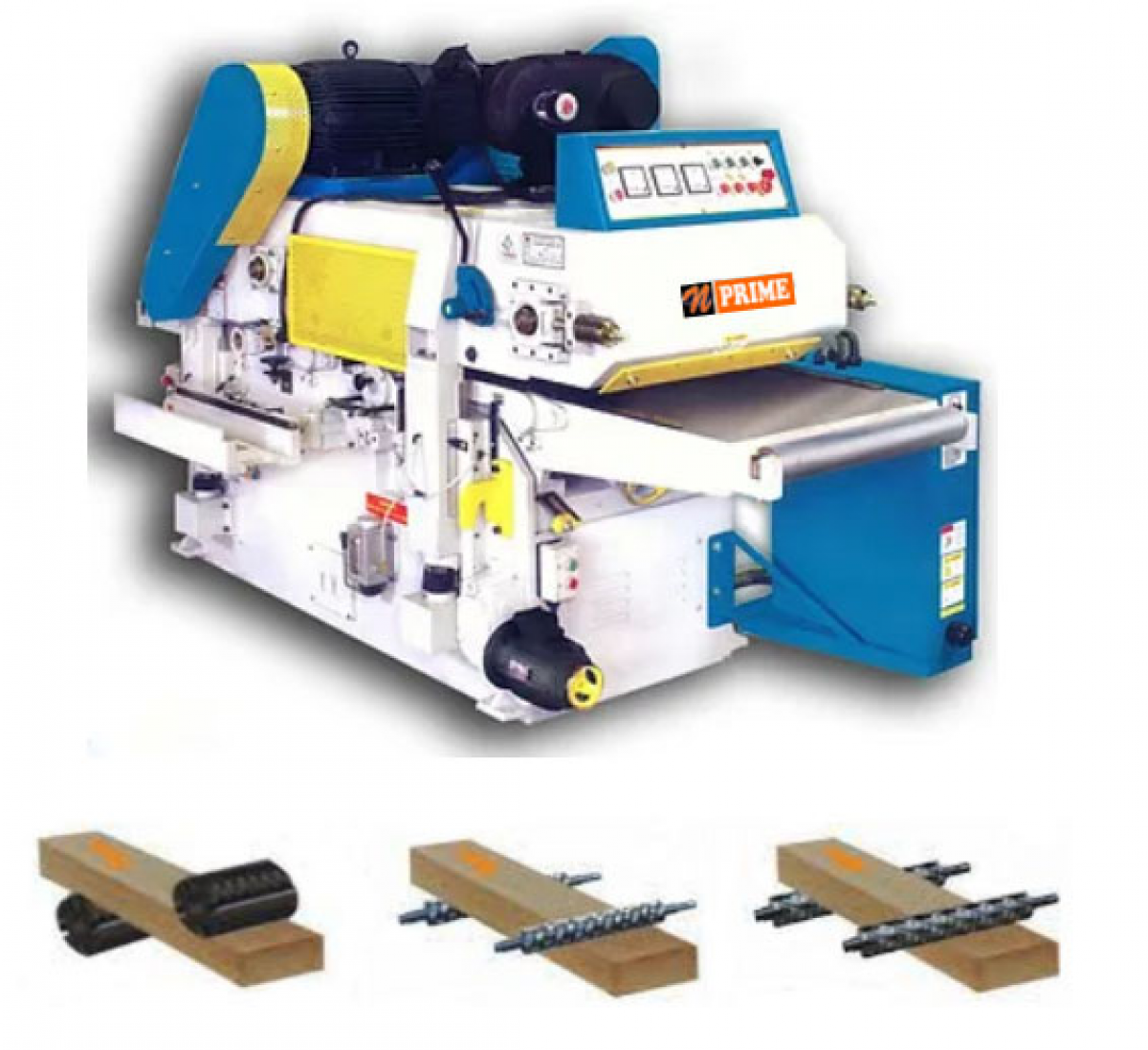

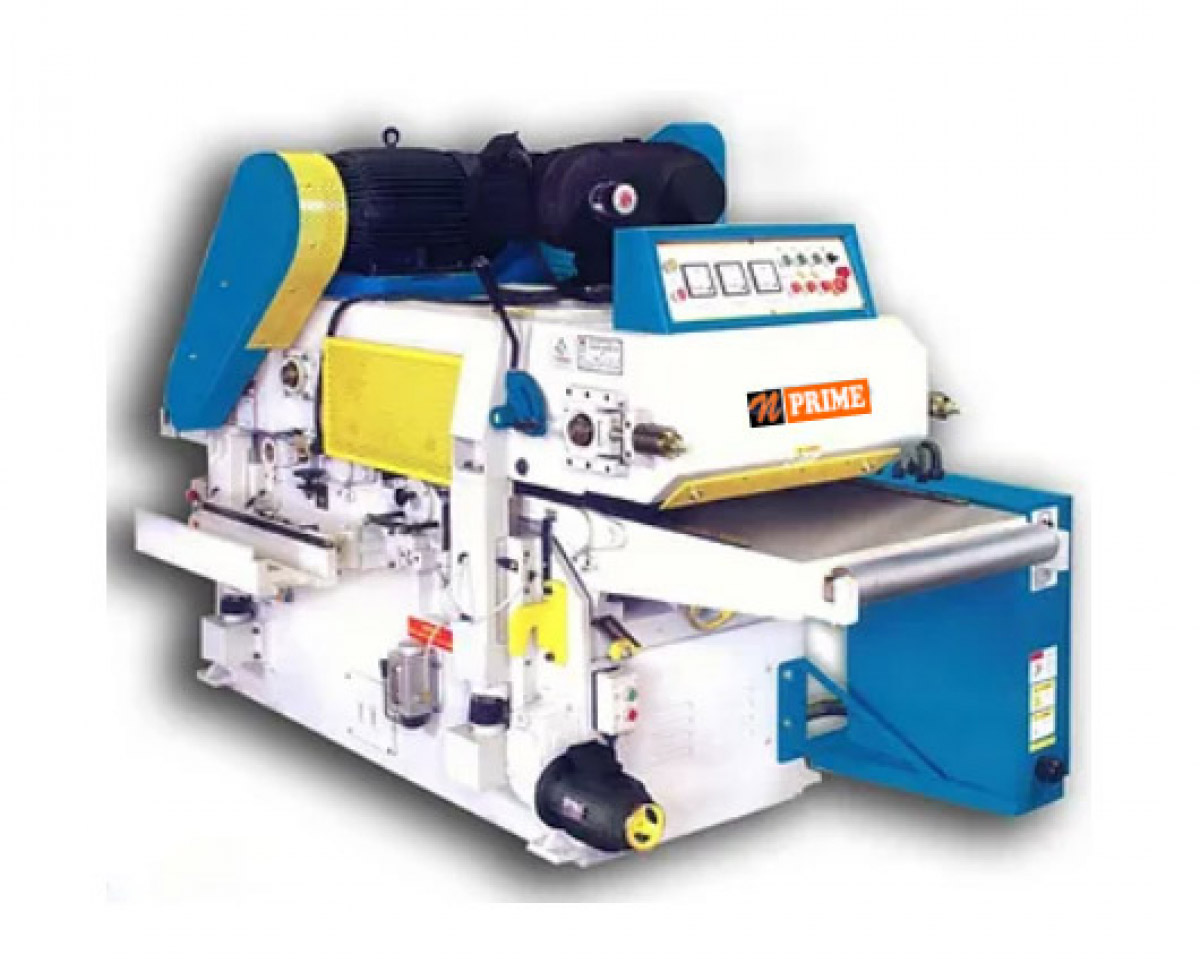

Double Side Planer
Double Side Planer
- Brand Name.
- SKU.NP-001 -1705990585
- Category.Solid Woodworking
DSP-610A
- Double Side Planer.
DSP-450A
- Double Side Planer.
| MODEL | DSP-450A | DSP-610A |
| MAX. WORKING WIDTH | 450mm | 610mm |
| MAX. WORKING THICKNESS | 8-200mm | 8-200mm |
| MIN. WORKING LENGTH | 300mm | 300mm |
| CUTTERHEAD SPEED | 4200rpm | 5000rpm |
| FEED SPEED | 3-15m/min | 3-20m/min |
| TABLE AREA | 2520mm*520mm | 2600mm*675mm |
| NUMBER OF KNIFE | 4 knives | 4 knives |
| TOP CUTTERHAND MOTOR | 15HP | 20HP |
| BOTTOM CUTTERHEAD MOTOR | 10HP | 15HP |
| FEED MOTOR | 2HP(3HP ON REQUEST) | 3HP(5HP ON REQUEST) |
| ELEAVATION MOTOR | 1/2 HP | 1/2 HP |
| NET WEIGHT | 2250KG | 3150KG |
| GROSS WEIGHT | 2550KG | 3500KG |
| MACHINE SIZE | 2750mm*1210mm*1650mm | 2820mm*1640mm*1800mm |
| PACKING SIZE | 2830mm*1100mm*1800mm | 1920mm*1300mm*1870mm |
