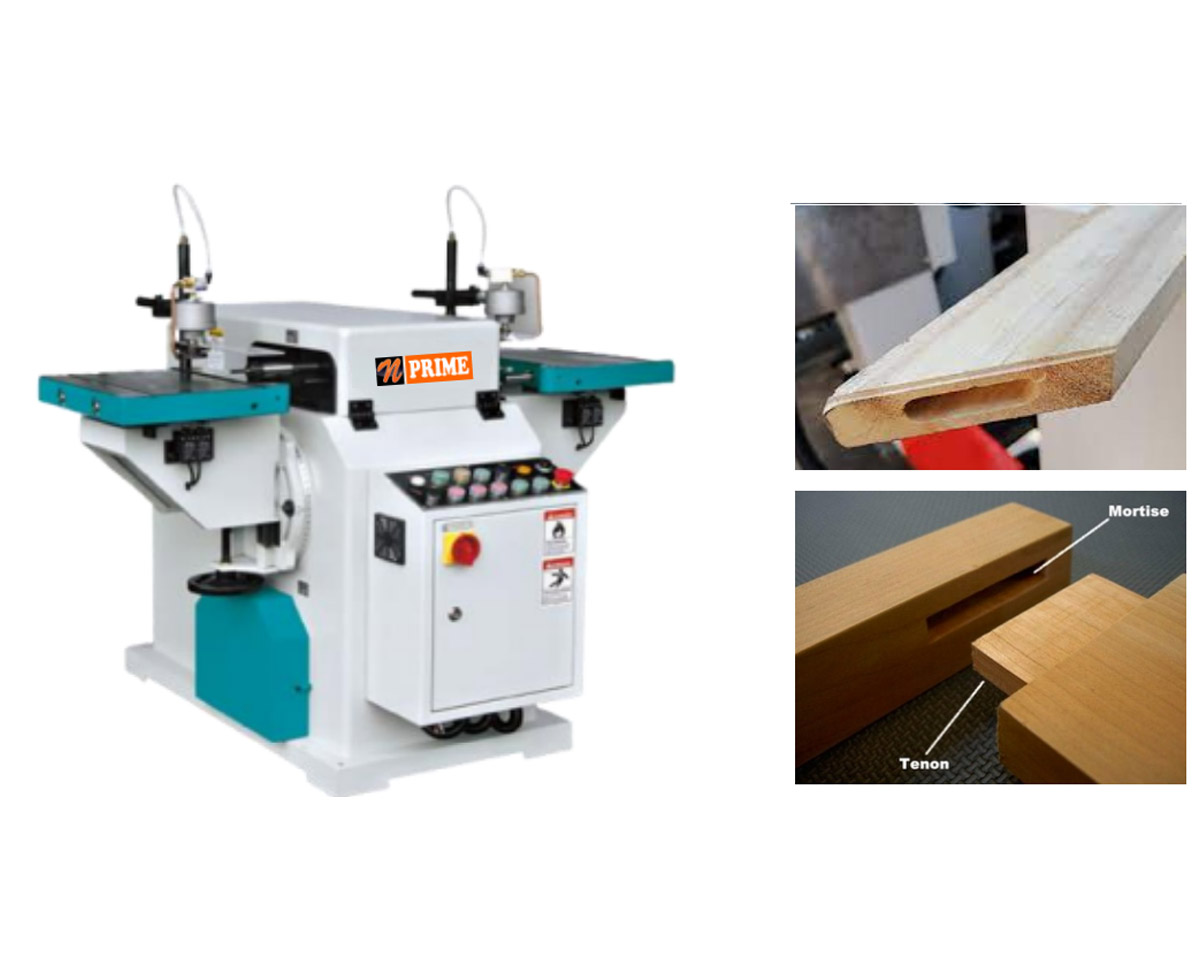

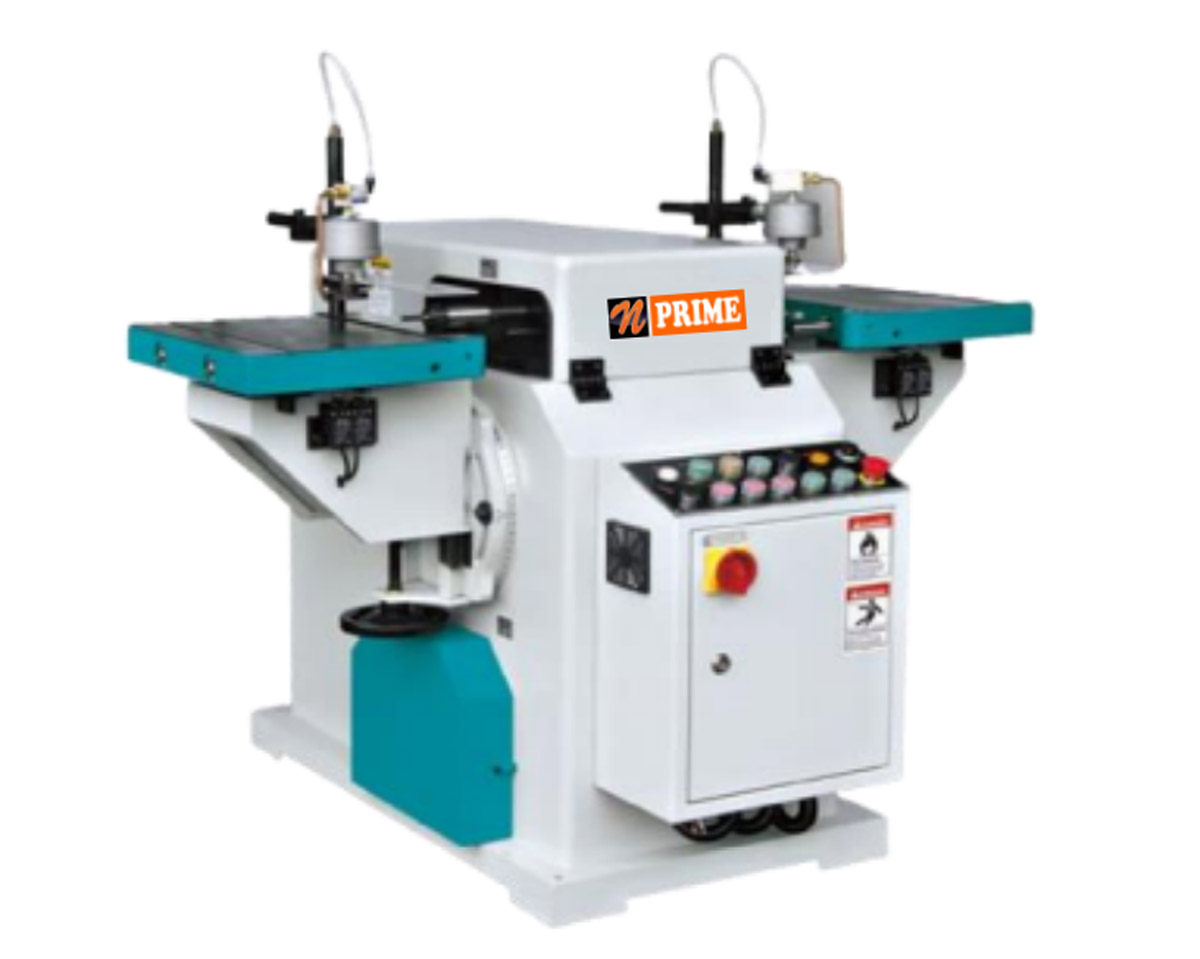

Automatic Twin Table Slot Mortiser
Automatic Twin Table Slot Mortiser
- Brand Name.
- SKU.NP-024
- Category.Solid Woodworking
AOM - 100
- Automatic Twin Table Slot Mortiser.
| Model | AOM - 100 |
| Mortise slot width | Max.100mm + slot thickness |
| Mortise slot width | 30 mm (max) |
| Mortise slot depth | 80 mm (max) |
| Production rate | 500-800 mortiser/hour |
| Table area | 275mm * 482mm * 2 |
| Table tilts (horizontal) | 0°-20° |
| Table vertical movement | 0 - 100 mm |
| Cutter speed | 9000 rpm |
| Cutter oscillation rate | 67 - 400 strokes/min |
| Spindle motor | 3 hp |
| Cutter oscillation motor | 0.5 hp |
| Machine dimensions | 950*1350*1270 mm |
| Net weight | 550kgs |
